STS TRAY
material Hot rolled mild steel (JIS G3101 SS41)stainless (SUS304, SUS 316, SUS316L)
welding arc., co₂,or ar welding.
standard lenght 3.0M or 3.6M
*other dimension can be manufactured to orde
surface treatment hot dip galvanized after fabrication.
other surface treatments are avilable upon special
requirement.
for further details, see technical data
connector employ 1/2" diameter ribbed-neck bolts and flaged nuts, order connectors, bolts and nuts as separate item.
feature shipping cable tray is light as the cable tray for ship and can festen the cable tie.

STEEL TRAY
Item width rung spacing
SFH-H-T-1001-1
SFH-H-T-1001-2
SFH-H-T-1001-3 		150 150
200
300
SFH-H-T-1002-1
SFH-H-T-1002-2
SFH-H-T-1002-3 		200 150
200
300
SFH-H-T-1003-1
SFH-H-T-1003-2
SFH-H-T-1003-3 		300 150
200
300
SFH-H-T-1004-1
SFH-H-T-1004-2
SFH-H-T-1004-3 		450 150
200
300
SFH-H-T-1005-1
SFH-H-T-1005-2
SFH-H-T-1005-3 		600 150
200
300
SFH-H-T-1006-1
SFH-H-T-1006-2
SFH-H-T-1006-3 		750 150
200
300
SFH-H-T-1007-1
SFH-H-T-1007-2
SFH-H-T-1007-3 		900 150
200
300

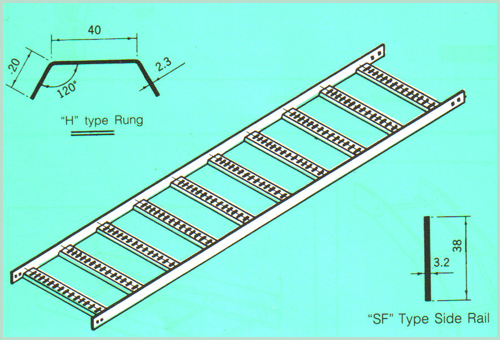

cabletray numbering system

lf you want the following articles, your ordering number is SFH-38-3.2-1003-2 the following

  • SF type siderail
  • H type rung
  • siderail height : 38m/m
  • side rail thickness : 3.2t
  • width : 300m/m
  • rung spacing : 200m/m
