Cable Trays 사업부

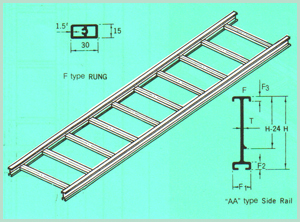

STRAIGHT SECTION "AAF" TYPE ALUMINIUM TRAY

AL TRAY
material aluminium
construction welding, tapping screw, or riiveting
standard lenght 3.0M or 3.6M
connectors employ 3/8 " square bolts
H-H. nuts and washer.
order connector , bolts
H-H. nuts and lockwasher as separate item.

STEEL TRAY
Item width rung spacing
AAF-H-T-1001-1
AAF-H-T-1001-2
AAF-H-T-1001-3 		150 150
200
300
AAF-H-T-1002-1
AAF-H-T-1002-2
AAF-H-T-1002-3 		200 150
200
300
AAF-H-T-1003-1
AAF-H-T-1003-2
AAF-H-T-1003-3 		300 150
200
300
AAF-H-T-1004-1
AAF-H-T-1004-2
AAF-H-T-1004-3 		450 150
200
300
AAF-H-T-1005-1
AAF-H-T-1005-2
AAF-H-T-1005-3 		600 150
200
300
AAF-H-T-1006-1
AAF-H-T-1006-2
AAF-H-T-1006-3 		750 150
200
300
AAF-H-T-1007-1
AAF-H-T-1007-2
AAF-H-T-1007-3 		900 150
200
300

cabletray numbering system

lf you want the following articles. your ordering number is AAF -50 -2.5-1003-2, the follwing

  • AA type side rail
  • F type rung
  • side rail height : 50 m/m
  • side rail thickness : 2.5t
  • width : 300m/m
  • rung spacing : 200m/m
