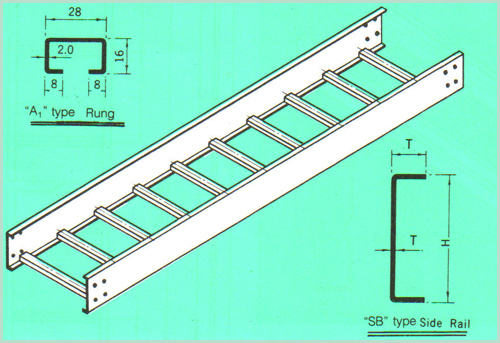

STRAIGHT SECTION "SE" TYPE CABLE TRAY FOR COMMUNICATION

STEEL TRAY
material hot rolled ild steel (JIS G3101 SS41)
atainless steel (SUS304, SUS316, SUS31S6L)
pregalvanized steel, aluminium.
welding arc., co₂,or ar welding.
standard lenght 3.0M or 3.6M
*other dimension can be manufactured to orde
surface treatment hot dip galvanized after fabrication.
other surface treatments are avilable upon special
requirement.
for further details, see technical data
connector employ 1/2" diameter ribbed-neck bolts and flaged nuts, order connectors, bolts and nuts as separate item.
features lt's good to use in the narrow space.

STEEL TRAY
Item width rung spacing
SEI-H-T-1001-1
SEI-H-T-1001-2
SEI-H-T-1001-3 		150 150
200
300
SEI-H-T-1002-1
SEI-H-T-1002-2
SEI-H-T-1002-3 		200 150
200
300
SEI-H-T-1003-1
SEI-H-T-1003-2
SEI-H-T-1003-3 		300 150
200
300
SEI-H-T-1004-1
SEI-H-T-1004-2
SEI-H-T-1004-3 		450 150
200
300
SEI-H-T-1005-1
SEI-H-T-1005-2
SEI-H-T-1005-3 		600 150
200
300
SEI-H-T-1006-1
SEI-H-T-1006-2
SEI-H-T-1006-3 		750 150
200
300
SEI-H-T-1007-1
SEI-H-T-1007-2
SEI-H-T-1007-3 		900 150
200
300

cabletray numbering system

lf you want the following articles, your ordering number is SEI-75-1.6-1003-2 the following

  • SE type side rail
  • I type rung
  • side rail height : 75m/m
  • side rail thickness : 1.6t
  • width : 300m/m
  • rung spacing : 200m/m
